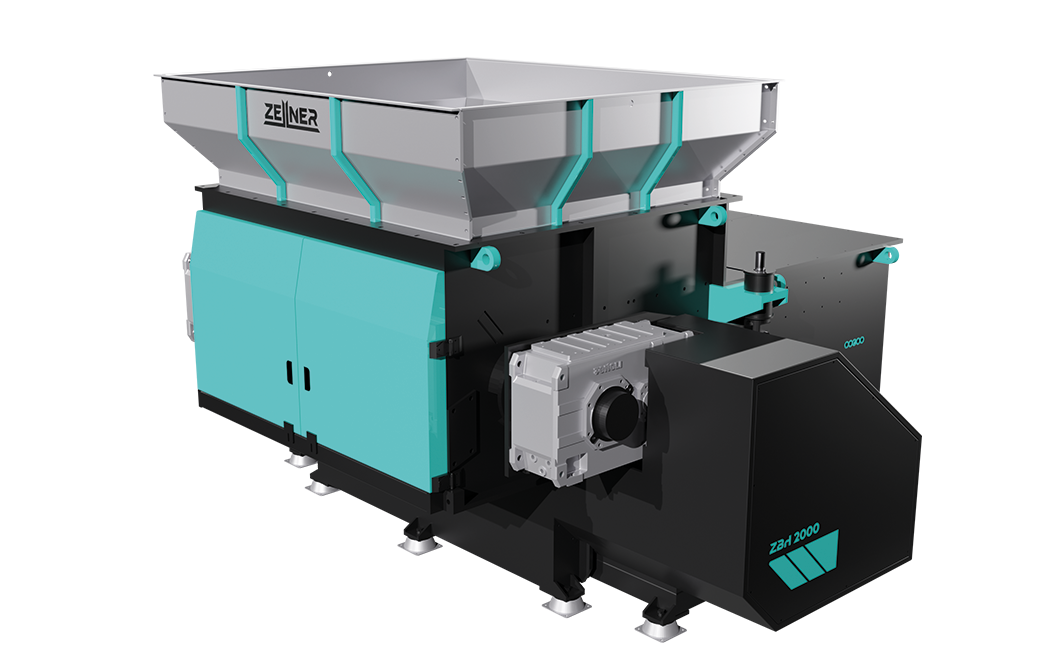

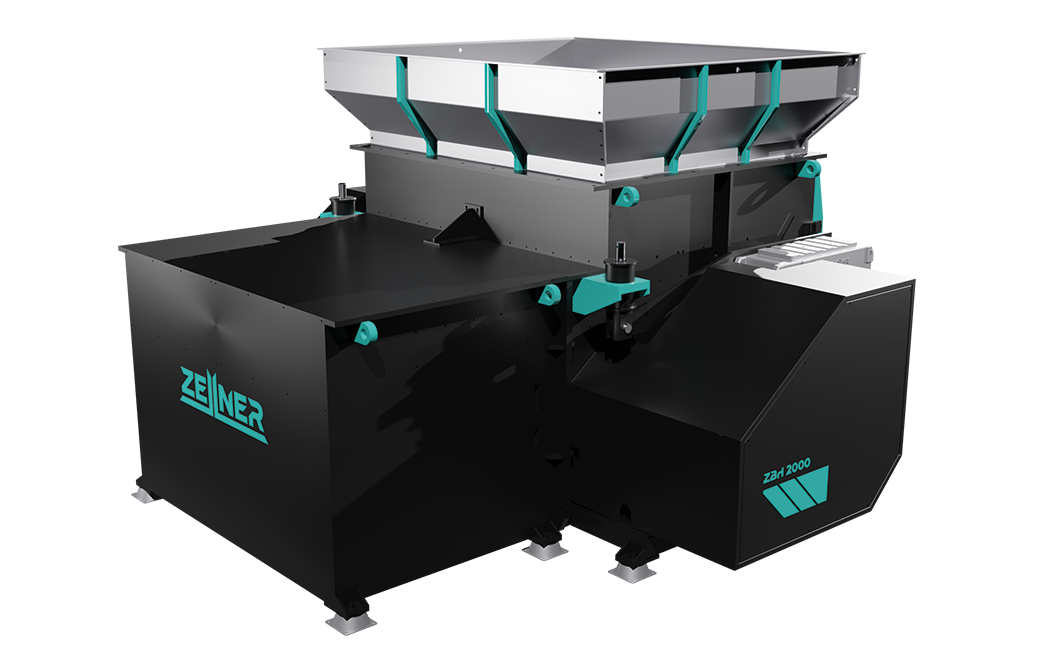

Series ZBH

Heavy Duty Single-Shaft Shredders

The ZBH single-shaft shredders are heavy-duty size reduction machines specifically engineered to process a wide range of material streams into coarse to medium-sized output, ideal for demanding recycling tasks and bulky items. The powerful, wear resistant shredder structure is well suited to process lumps, extruded profiles, pallets, copper cables, aluminium cans, carpet rolls, foam, municipal waste for RDF/SRF production and so on.

  • Designed for energy efficiency while delivering highest cutting power and throughput
  • Gearbox with shock absorption to protect drive components
  • Rotor blades reversible on four edges to extend service life
  • Adjustable, long-life counter knives to maintain optimal cutting clearance for longer
  • Fast-change screens for consistent particle-size control
  • Segmented chamber floor with brass wear guides
  • Heavy-duty pusher drawer on robust rollers
  • Dual-speed hydraulic system with built-in air cooling
  • Independent electrical control cabinet featuring a Siemens PLC touch screen
Force Feeding Ram
Force Feeding Ram
High Performance Rotor
High Performance Rotor
Hydraulic Power Unit
Hydraulic Power Unit
Hydraulic Opening Design
Hydraulic Opening Design
Classifier Screen
Classifier Screen

Technical specifications

Model ZBH1500 ZBH2000 ZBH2200 ZBH2800 ZBH1800 ZBH2400
Dimension (L x W x H) (mm) 3710 × 2880 × 2530 3710 × 4150 × 2530 3920 × 4500 × 2720 3920 × 5600 × 2720 4070 × 4070 × 2870 4070 × 4670 × 2870
Hopper Opening (L x H) (mm) 2080 × 1880 2080 × 2380 2380 × 2580 2380 × 3180 2530 × 2180 2530 × 2780
Discharge Height (mm) 720 720 720 720 800 800
Rotation Diameter (mm) Ø 480 Ø 480 Ø 650 Ø 650 Ø 800 Ø 800
Operation Length (mm) 1500 2000 2240 2840 1790 2390
Rotation Speed (RPM) 80 80 80 80 80 80
Ram (mm) 1100 1100 1100 1100 1100 1100
Number of Rotor Knives 84+6 95+6 109+6 216+4 106+6 124+6
Number of Counter Knives 3+3 4+4 4+4 5+5 3+3 4+4
Main Drive (kW) 110 75+75 90+90 110+110 90+90 132+132
Hydraulic Power Pack (kW) 7.5 7.5 11 15 11 15
Weight (kg) Approx 11110 Approx 14800 Approx 18000 Approx 21000 Approx 16000 Approx 20000
