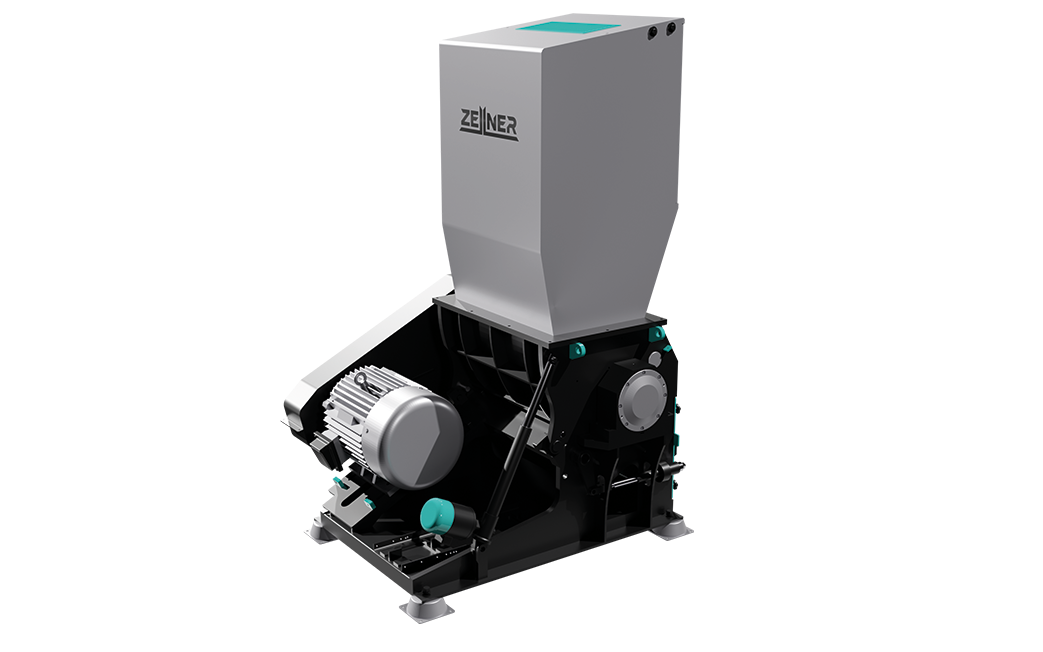

Granulator series ZGMC
Granulators
ZGMC Heavy Duty Granulators are designed for high throughput size reduction of larger sized products in a single pass. These machines are specifically designed for treating plastic film or PP big bag material of high contamination. Incorporating various different methods of wear protection such as replaceable wear plates and resistant surface coatings, the ZGMC machines are well suited to processing abrasive, contaminated materials such as glass filled plastics and dirty films containing sand particles.
Technical specifications
| Model | ZGMC800 | ZGMC1000 |
|---|---|---|
| Dimensions (L × W × H) (mm) | 2165 × 1780 × 3090 | 2165 × 1980 × 3090 |
| Hopper Opening (L × H) (mm) | 760 × 615 | 950 × 810 |
| Rotation Diameter (mm) | 520 | 520 |
| Operation Length (mm) | 800 | 1000 |
| Rotation Speed (RPM) | 520 | 520 |
| Number of Rotor Knives (pcs) | 8 | 8 |
| Number of Counter Knives (pcs) | 2 | 4 |
| Main Drive (kW) | 55 | 75 |
| Weight (kg) | Approx 5580 | Approx 6180 |
