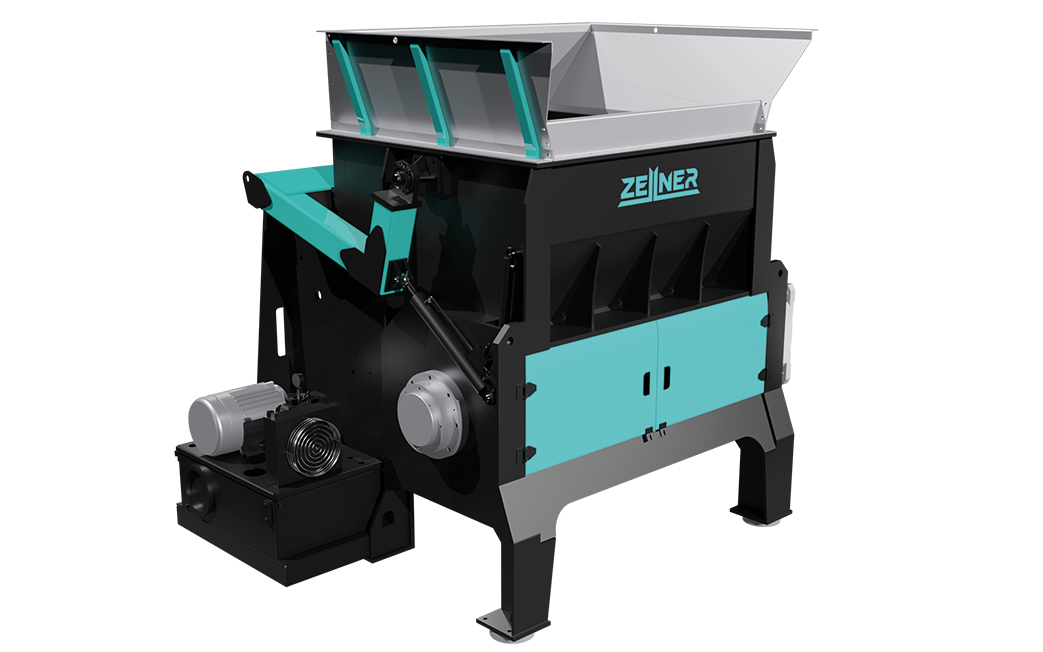

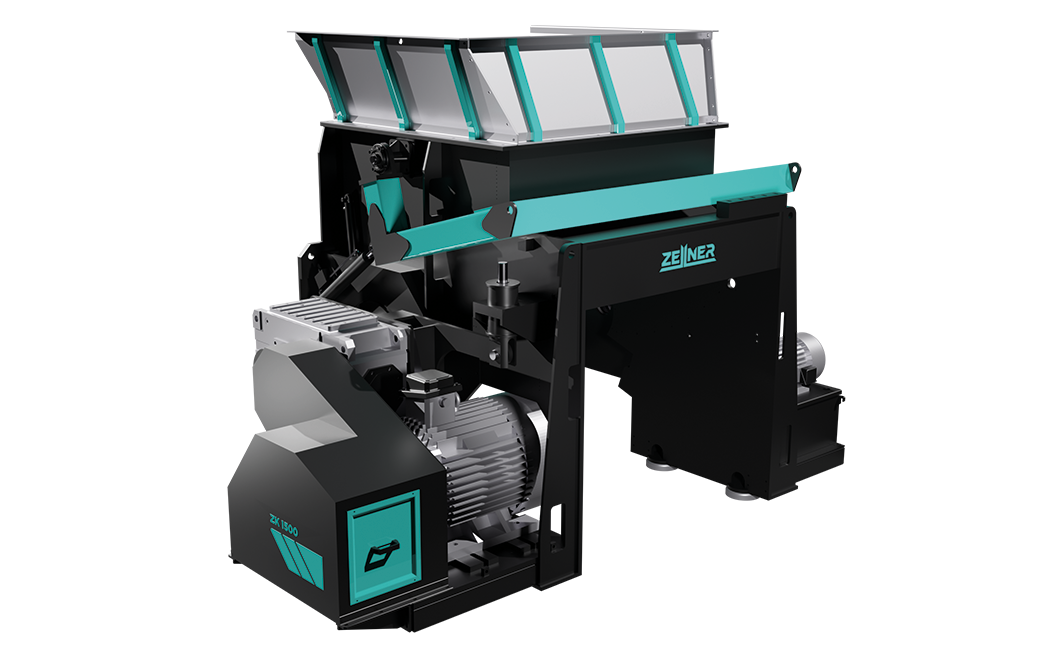

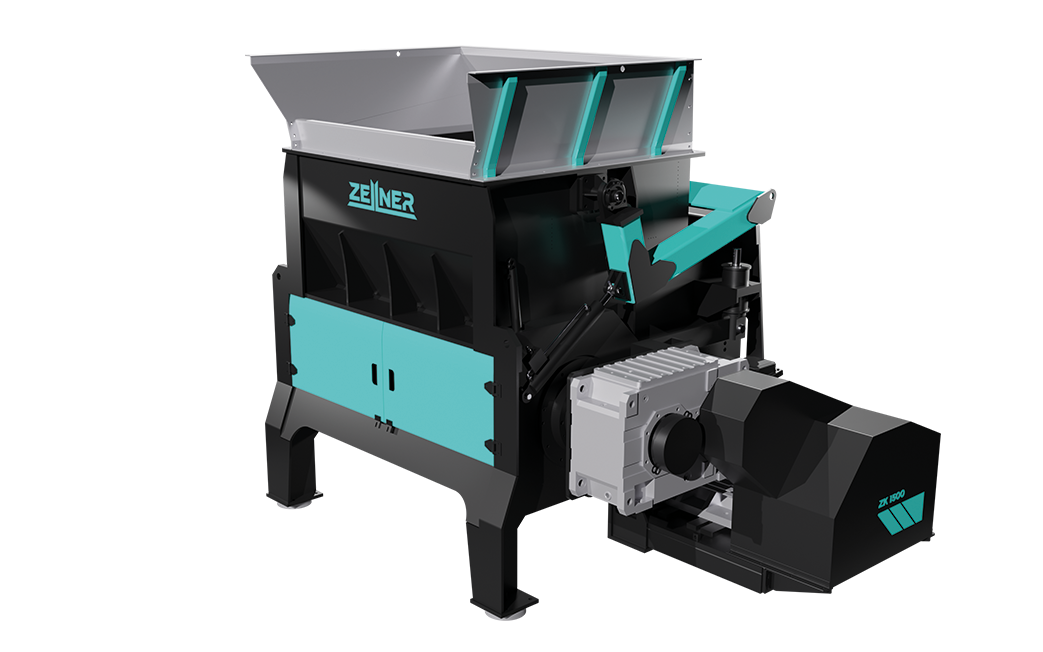

Single Shaft Shredder ZK Single Shaft Shredder ZK Single Shaft Shredder ZK Single Shaft Shredder ZK

Series ZK

Single Shaft Shredder

ZK Series Single Shaft Shredders are heavy duty machines suitable for processing a wide range of materials. This range of shredders are ideal for the size reduction of flexible and/or medium hard voluminous products often loaded in bales. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor loading, maximizing material throughput. Machine capacities typically range between1,500kg/hr –9,000kg/hr+ depending on the model, maximising material type and application.

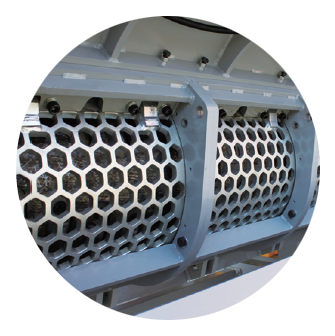

Classifier Screen
Classifier Screen

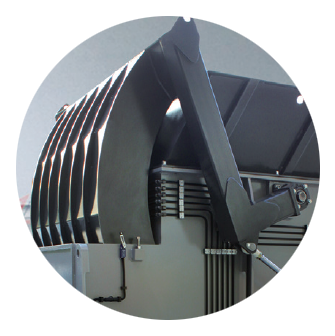

Hydraulic Pusher
Hydraulic Pusher

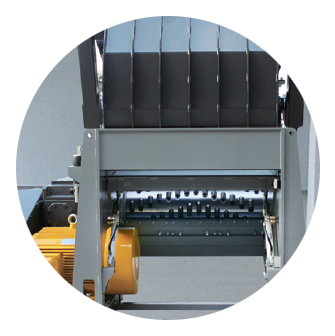

Maintenance Access Door
Maintenance Access Door

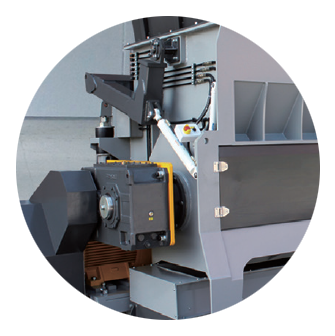

Robust Drive & Gearbox
Robust Drive & Gearbox

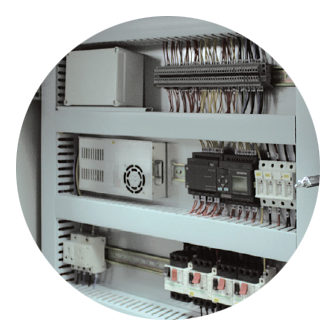

Intelligent Control Panel
Intelligent Control Panel

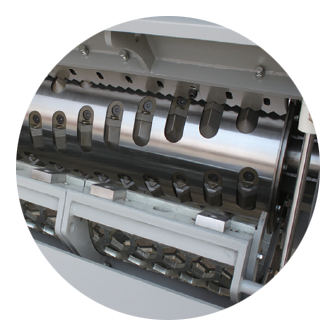

High Performance Rotor
High Performance Rotor

Technical specifications

Model ZK1500 ZK2000
Dimensions (L × W × H) (mm) 2230 × 3660 × 2970 2230 × 3710 × 2970
Hopper Opening (L × H) (mm) 1360 × 1910 1360 × 2410
Discharge Height (mm) 460 460
Rotation Diameter (mm) Ø 480 Ø 465
Operation Length (mm) 1500 2000
Rotation Speed (RPM) 80 80
Swing Pusher Ram (mm) 420 420
Number of Rotor Knives (pcs) 88 95
Number of Counter Knives (pcs) 3+3 4+4
Main Drive (kW) 110 75+75
Hydraulic Power Pack (kW) 11 11
Weight (kg) Approx 12500 Approx 15000
